Antenna project part II - The tower and antenna installation

As a sequel to Part I of the Antenna Tower Project here's the tower and antenna setup ... - it was a real effort with up to 10 people working on it. The photos hopefully convey how much sweat it cost to almost finish this - the beam still needs two more sleeve element sets being installed - with luck (weather, help from my fellow antenna installers) we should be able to actually complete this by next Saturday ...

The tower is a Hummelmasten Explora 500 and the beam is an OptiBeam OB16-5 . Pretty impressive 30 feet boom and maximum element length (no traps, nowhere) of 34 feet. But:

See the pictures below and enjoy!

At 07:00 AM work began ... - Hummelmasten delivers the tower.

Unloading stuff ...

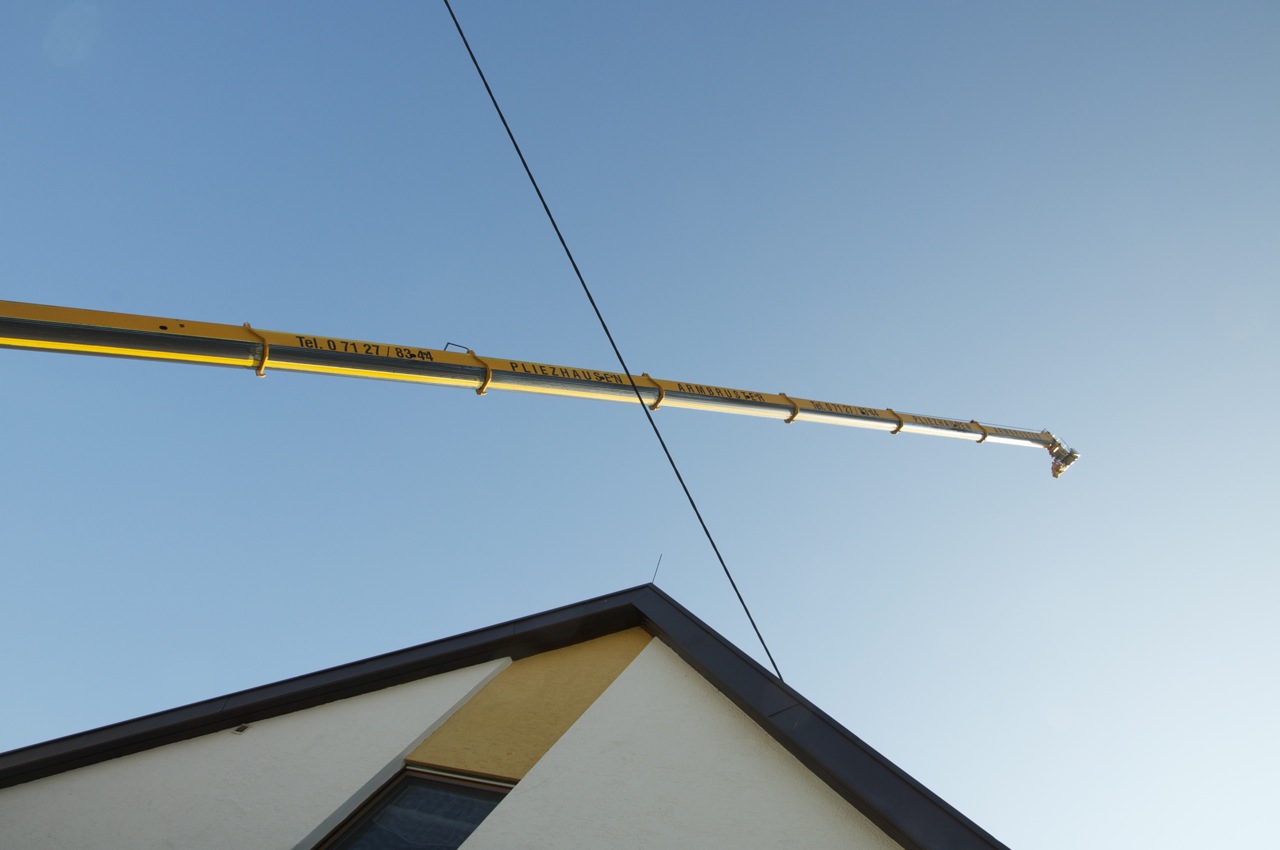

The truck-mounted crane - maximum height 55 meters / 165 feet - came half an hour early....

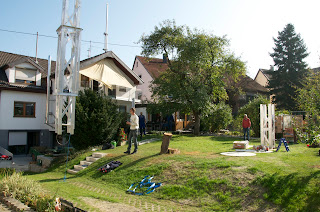

tower ready to be lifted to its place.


My father-in-law (red shirt) and a neighbor discussing why on earth this thing has to be so large  ;-)





Mr Hummel, designer of the tower and company owner of Hummelmasten, directing the crane guy how to position the tower ...


Almost there !


Goenninger family (two of my three brothers) at work !





Helga Hummel fastening some screws - Hummel family completely here to install the tower. Besides the work and sweat we had a good time together ...

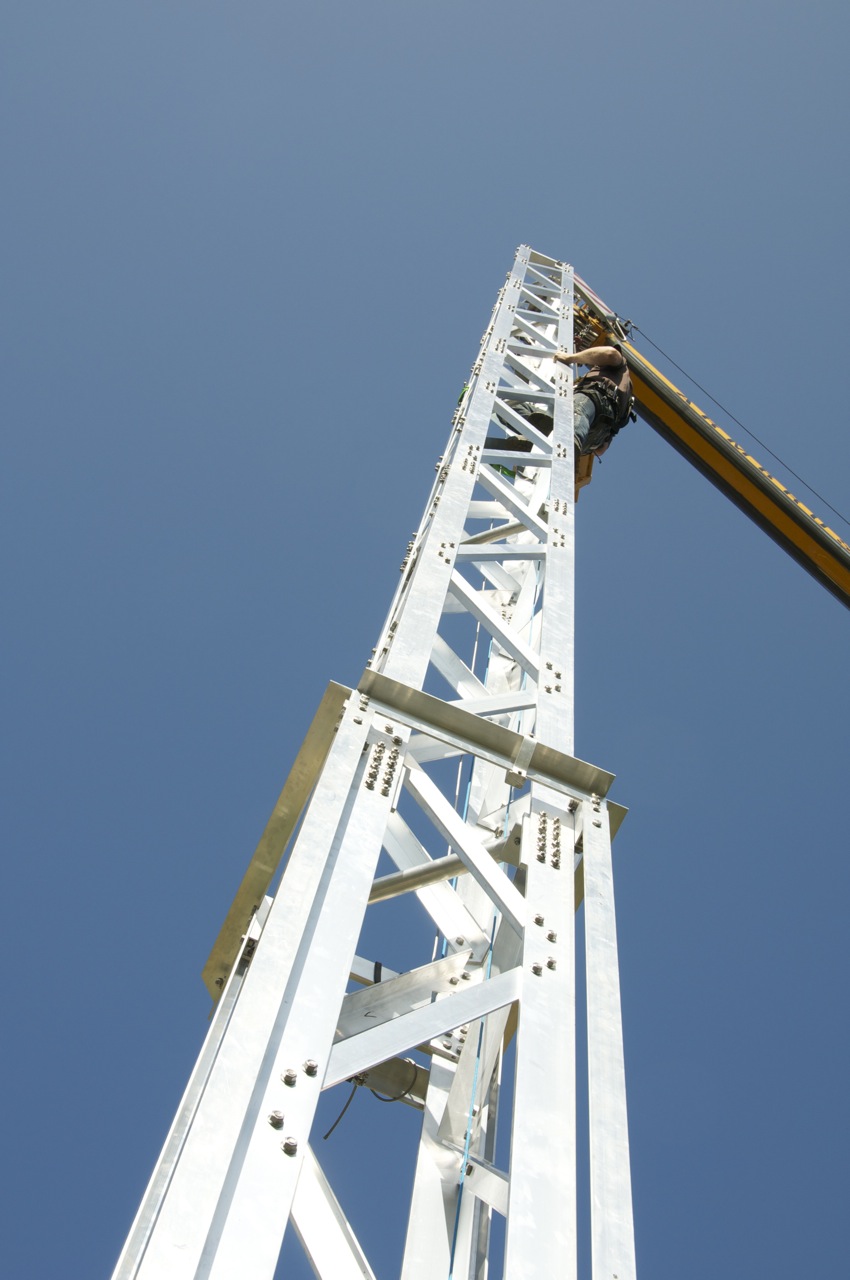

Mr Allenstein, son of Mr Hummel, getting ready to climb the tower.














The crane controller - funny guy with very accurate positioning of the crane - he had to go to 189% of spec'ed limits to cross the 39 meters distance between point of installation of the tower and the location of the crane on the street !

Real teamwork ! ;-)


Family was not enough - our neighbor had to help, too.

Trying to put together the cables for mounting at the antenna and tower.


Installation of the rotor -  a Pro.Sis.Tel PST-61D .

The tech data of the winch.

The tech data of the rotor.

The 20m reflector and the 12m and 17m sleeves being assembled.


After sunset (around 20:00 PM) we stopped work ...

... it was enough for this day.

A big THANK YOU to all the helpers (Alexander Schwab, Dirk Goenninger, Marc Goenninger, Marian Goenninger, Stefan Hild) and the Hummel family for the superb teamwork and the incredibly good work results ! There will be a topping-out ceremony with real Ham Radio QSOs to demonstrate the capabilities of my new toys ;-)

73, Frank DG1SBG
